Información detallada del Producto

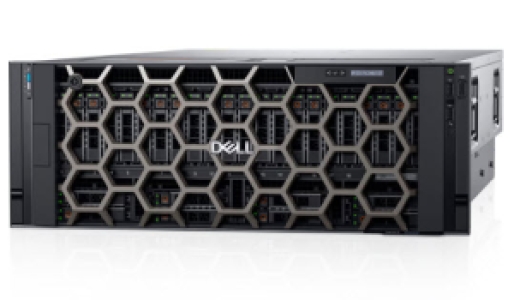

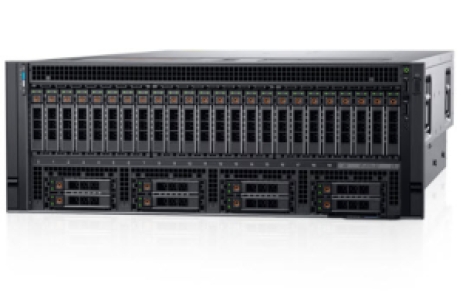

PowerEdge R940xaProcessor Up to four 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each
Memory 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max Up to 12 NVDIMM, 384GB Max –
Up to 24 Intel® Optane™ DC persistent memory PMem, max 12.28TB, (15.36TB max with PMem and LRDIMM)
Supports registered ECC DDR4 DIMMs only
Storage controllers
Internal Boot
Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers: H840, 12 Gbps SAS HBA, HBA355e
Software RAID:S140
Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module1
Drive bays Front drive bays: Up to 8x 2.5” SAS SATA (HDD/SSD) max 61.44TB, or up 24 x 2.5” SAS/SATA (HDD/SSD) max 184.32TB, or up to 32 SAS/SATA (HDD/SSD) with up to 4 NVME PCIe SSD max 245.76TB
Power supplies Gold 1100W -48VDC
Platinum: 1100W, 1100W 240VDC2 1600W, 2000W, 2400W
Titanium: 1600W HLAC, 2600W HLAC
Hot plug power supplies with full redundancy option
6 hot plugs fans with N +1 redundancy
Dimensions Form factor: Rack (4U) Height: 174.3 mm (6.87”)
Width: 441.16 mm (17.37”)
Depth: 835.9mm (32.9”)
Weight: 56.0kg (123.5lbs.)
System Lockdown (requires iDRAC Enterprise or Datacenter)
Silicon Root of Trust Secure Erase
I/O & Ports Network Daughter Card Options
4 x 1GbE, 4 x 10GbE, 2 x 10GbE+2 x 1GbE, or 2 x 25GbE
Front ports: 1 x Dedicated iDRAC Direct
Micro-USB, 2 x USB 2.0, 1 x VGA. (Optional 1 x USB 3.0 only
offered on the 8-drive configuration)
Rear ports: 1 x Dedicated iDRAC port, 1 x Serial, 2 x USB 3.0,
1 x VGA
Internal port: 1 x USB 3.0
Video card: 2 x VGA
PCIe: Up to 12 x Gen3 slots, (6x16 slots or 2x16 + 10x8 slots)
Accelerator Options Up to 4 doublewidth GPUs or up to 4 double-width
or 8 single-width full-height FPGAs
Supported operating systems
Canonical® Ubuntu® LTS
Citrix® Hypervisor
Microsoft Windows Server® LTSC with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
