PowerEdge R750xsDell EMC PowerEdge R750xs Specifications
Processors
Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores.
Memory
16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s Supports registered ECC DDR4 DIMMs only
Storage controllers
Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
External PERC (RAID): PERC H840, HBA355E
Drive bays

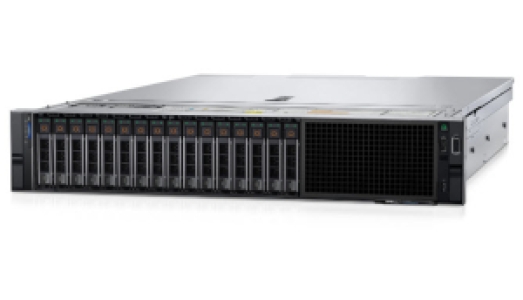

Front bays:
0 drive bay
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
Rear bays:
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Power supplies
600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)
Cooling options Air cooling
Fans Standard fans/High performance Silver fans/High performance Gold fans
Up to six hot swap fans
Dimension
Height – 86.8 mm (3.41 inches)
Width – 482 mm (18.97 inches)
Depth – 707.78 mm (27.85 inches) – without bezel and 721.62 mm (28.4 inches) – with bezel
Form Factor 2U rack server
Embedded management
iDRAC9
iDRAC Direct
iDRAC Service Module
Quick Sync 2 wireless module
OpenManage Software
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Embedded NIC 2 x 1 GbE LOM
Network Options 1 x OCP 3.0
GPU options Not supported
Ports Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA
Internal Ports
1 x USB 3.0

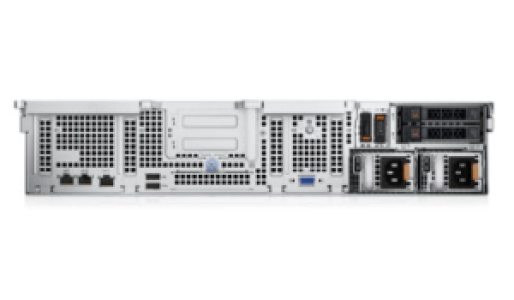

Rear Ports
1 x USB 2.0
1 x Serial (optional)
1 x USB 3.0
2 x RJ-45
1 x VGA (optional for liquid cooling configuration)
PCIe Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots
3 x16 Gen4 low profile
2 x16 Gen4 low profile (optional)
x8 Gen3 (x4 lane) low profile
Operating System and Hypervisors
Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
