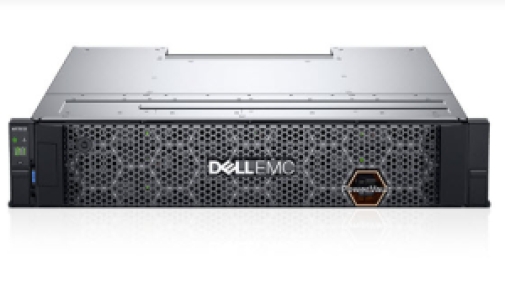

PowerVault ME5024PowerVault ME5024 Specifications
Chassis Overview
Chassis format All-in-one: dual controllers, internal drive bays, networking and with expansion options
Rack size 2U or 5U
Controllers 2 hot-swappable per chassis (dual-active)
Single/dual controller support for 2U models
Dual controller support only for 5U model
Processor Intel® Xeon Processor
Internal storage ME5024: 24 x 2.5” drive bays
System memory 16GB per controller (32GB total)
Expansion Capacity
Min/Max drive count ME5024: 2/276
Max raw capacity1 ME5024: Up to 2.56PB (total with 9 ME412)
ME5024: Up to 1.83PB (total with 9 ME424)
ME5024: Up to 5.72PB (total with 3 ME484)
NAS Support Supported with NX Series Windows NAS appliance
Storage media SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:
• NLSAS 7.2K 3.5” – 4TB, 8TB, 12TB, 16TB, 16TB FIPS, 20TB, 22TB
• SAS 10K 2.5” – 1.2TB, 2.4TB, 2.4TB FIPS
• SSD – 960GB RI, 1.6TB MU, 1.92TB, 3.84TB, 3.84TB FIPS, 7.68TB RI
• SDD and HDD: FIPS-certified SEDs

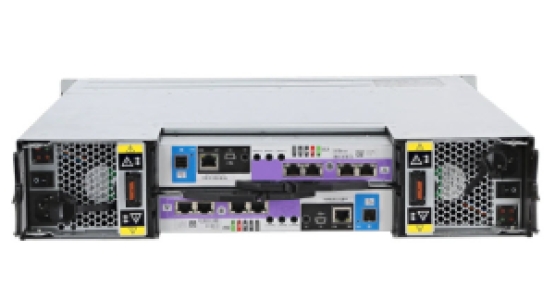

Network, Expansion Enclosure and I/O
Host interface FC, iSCSI (optical or BaseT), SAS
Max 32Gb FC ports 8 per array (support auto-negotiate to 16Gb)
Max 25Gb iSCSI ports 8 SFP+ or SFP28 ports per array
Max 10Gb iSCSI ports 8 BaseT ports per array (only support auto negotiate to 1Gb)
Max 12Gb SAS ports 8 12Gb SAS ports
Max management ports 2 per array (1Gb BASE-T)
Disk expansion protocol 12Gb SAS
"Disk interface expansion ports"
2 x 12Gb SAS (wide-Port) per array (1 port per controller)
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Functional
Array configurations All-flash, hybrid flash, HDD only arrays
Storage format Native block-level SAN or DAS
Data Optimization
Auto-tiering Up to 3 primary (media-based) tiers
RAID support RAID 1, 5, 6, 10, or ADAPT RAID; any combination of RAID levels can exist in single array
ADAPT RAID Distributed erasure coding that reduces rebuild times when drive failures occur
Thin provisioning
Active by default on all volumes, operates at full performance across all features
Snapshots 1024 maximum re-direct-on-write snapshots per array
